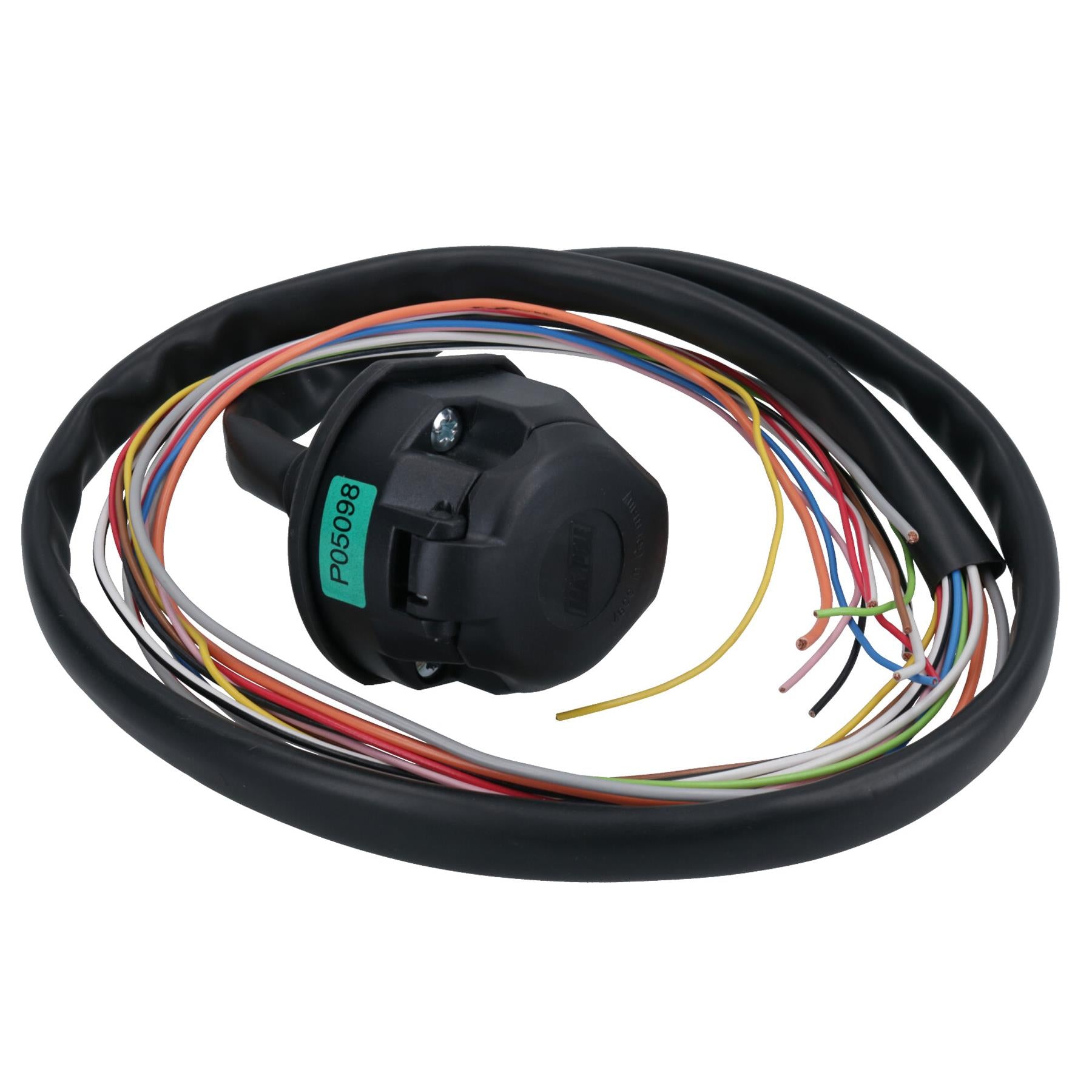

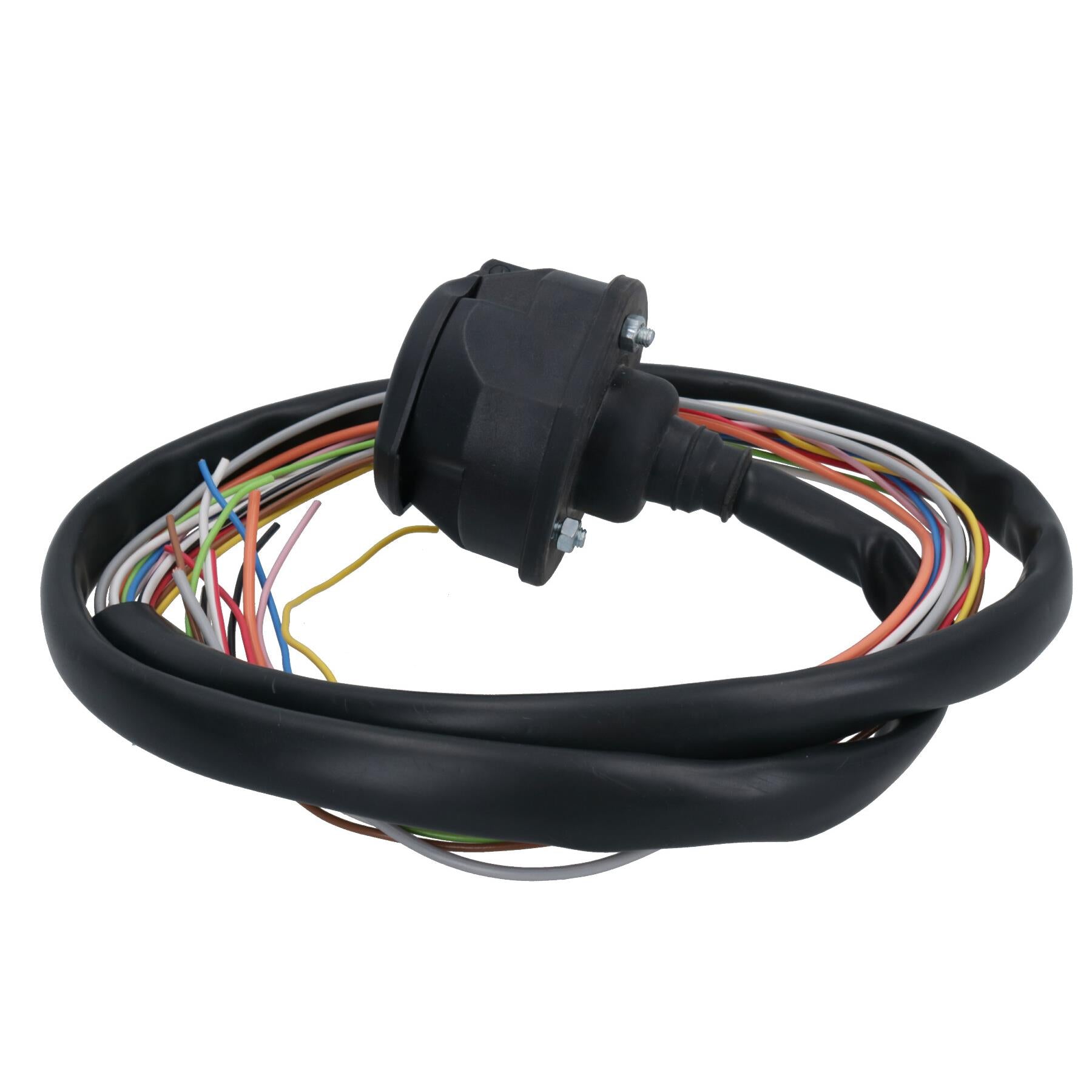

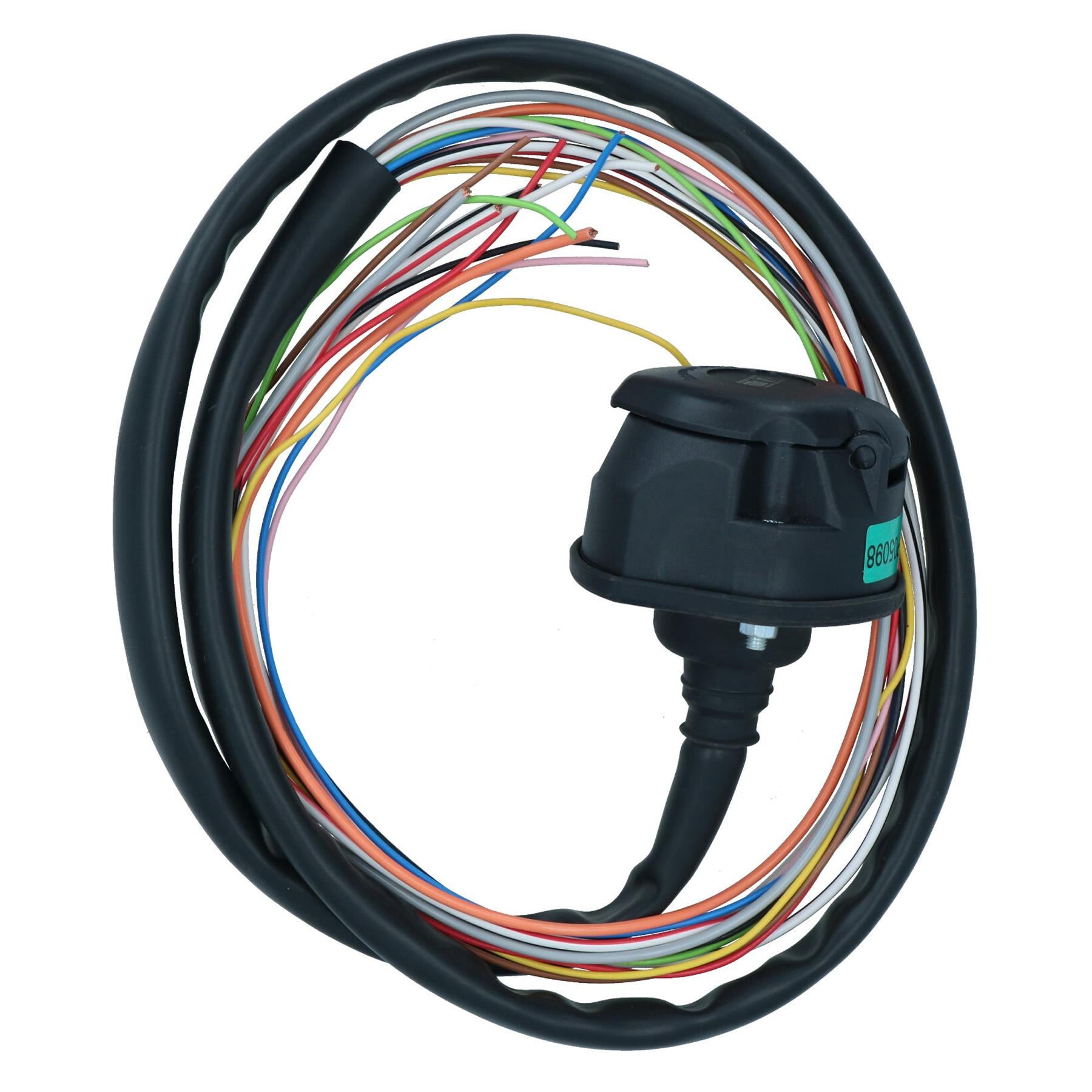

13 Pin Pre Wired Socket For Tow Bar Electrics With 1.5m Cable Caravan Trailers
Regular price
£25.64 GBP
Sale price
£25.64 GBP
Description
Professional pre-wired 13 pin towing electrics pre wired socket
Complete with socket, rear seal and fixing bolts
Perfect for new installations or for converting existing tow bars to the latest 12 pin sockets to fit the latest caravans
13 Pin socket powers the lights on a trailer or caravan and provides supplementary circuits, such as battery charging, power for a fridge, reversing light etc-.
Brass pins in a durable plastic housing.
12 Core Cable in a 13 Pin Socket. (Pin 12 is not normally used and therefore has no wire going to it)
Suitable for use with virtually all tow bars
Provides power for the electrics for the lights on a trailer or caravan as well as for caravan fridge, charger etc...
All 13 wires are pre – wired for easy and quick connection to your vehicle

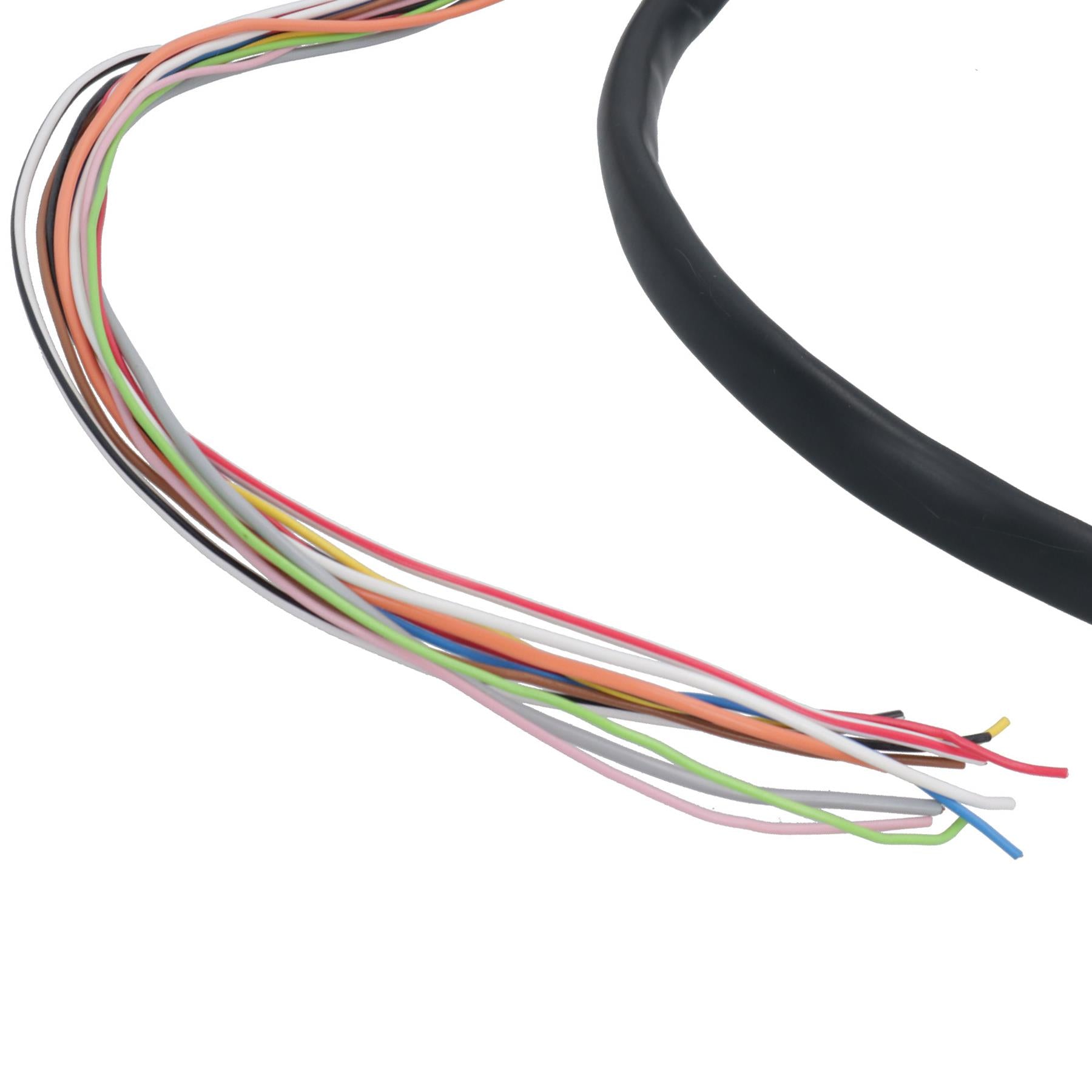

Comes with 1.5 metres of sheathed cables so plenty of extra cable for access into your vehicle connections
Sheathed cable also offers better flexibility which makes it easier to fit and use
13 pin socket manufactured in accordance with IS011446 as well as to European quality
SPECIFICATIONS
• Pre-wired 13 pin socket
• Complete with flexible gasket and 3 x fixing bolts
• 12 core cable – (7 x 0.65mm, 1 x 1.5mm and 4 x 2.5mm)
• Different amp cables for different requirements – 5A, 12A and 21A
FITTING REQUIREMENTS
1. Pin 1 / Colour – yellow / Purpose – Left hand Indicator
2. Pin 2 / Colour – blue / Purpose – Rear fog lights
3. Pin 3 / Colour – white / Purpose – Suitable good earth
4. Pin 4 / Colour – green / Purpose – Right hand indicator
5. Pin 5 / Colour – brown / Purpose – Right hand tail lamps
6. Pin 6 / Colour – red / Purpose – stop lamps
7. Pin 7 / Colour – black / Purpose – left hand tail lamp
8. Pin 8 / Colour – pink / Purpose – Reverse
9. Pin 9 / Colour – orange / Purpose – Battery supply (permanent)
10. Pin 10 / Colour – grey / Purpose – Battery supply (ignition switched)
11. Pin 11 / Colour – white / black / Purpose – earth return
12. Pin 12 - Not Provided
13. Pin 13 / Colour – yellow / Purpose – earth return
IMPORTANT – the three earth returns should not be connected together in the trailer and pins 5 and 7 should never be connected together
