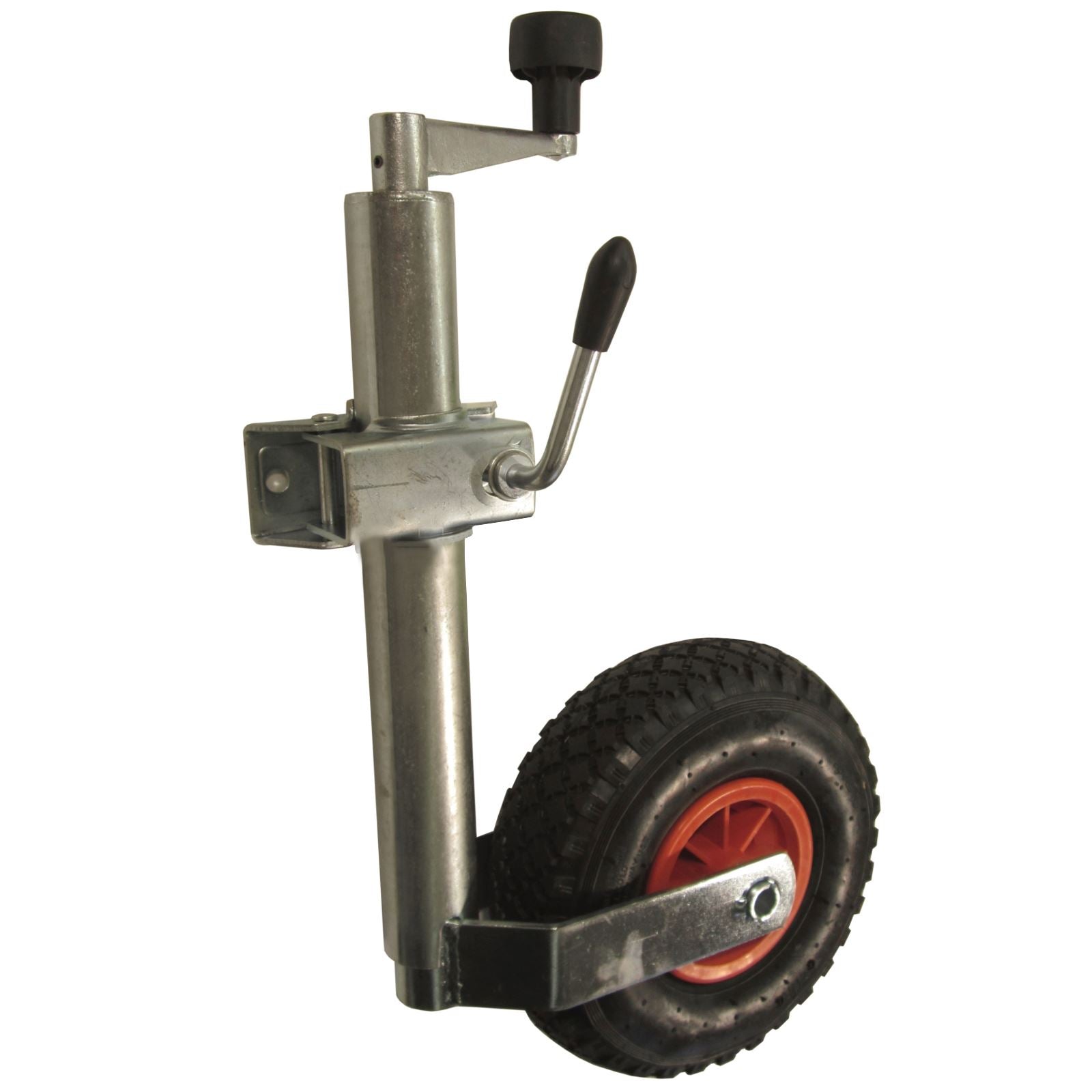

Heavy duty pneumatic jockey wheel and clamp (48MM)TR005

This listing is for a 48mm Pneumatic Jockey wheel and pressed steel clamp for trailers and caravans.

Pneumatic tyre spreads the load more than solid versions and is ideal where the trailer or caravan may be run on grass or sand. The pneumatic tyre also rides over small stones and ridges better than solid versions and so is recommended for use with caravan movers.

High quality, OEM standard.

260mm diameter and 85mm wide plastic wheel with pneumatic tyre.

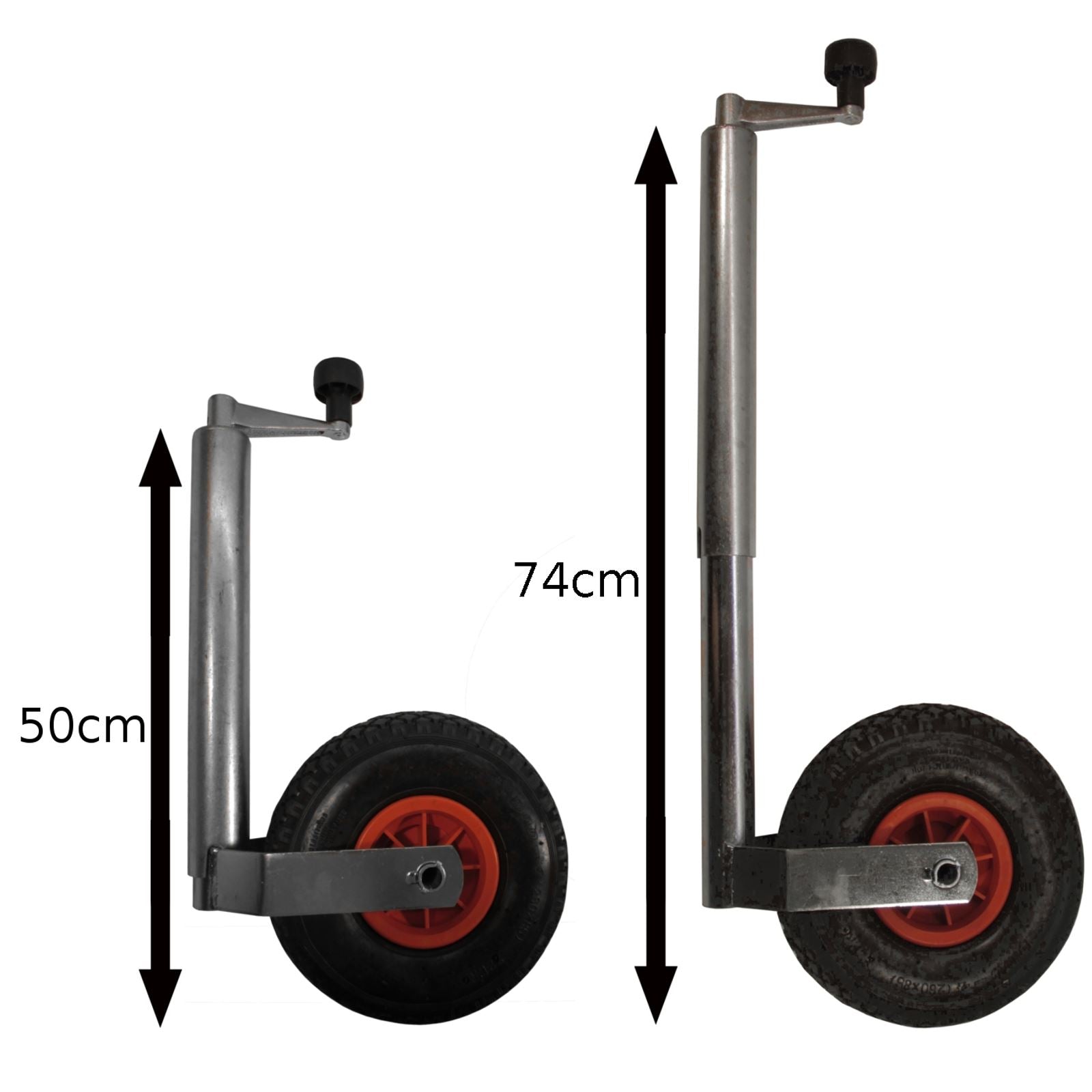

Sizes are as pictured, from the ground to the bottom of the handle it is 50cm when wound in and 74cm when fully unwound. (Please do confuse with descriptions that include the handle in the height measurement. This is the usable height distance)

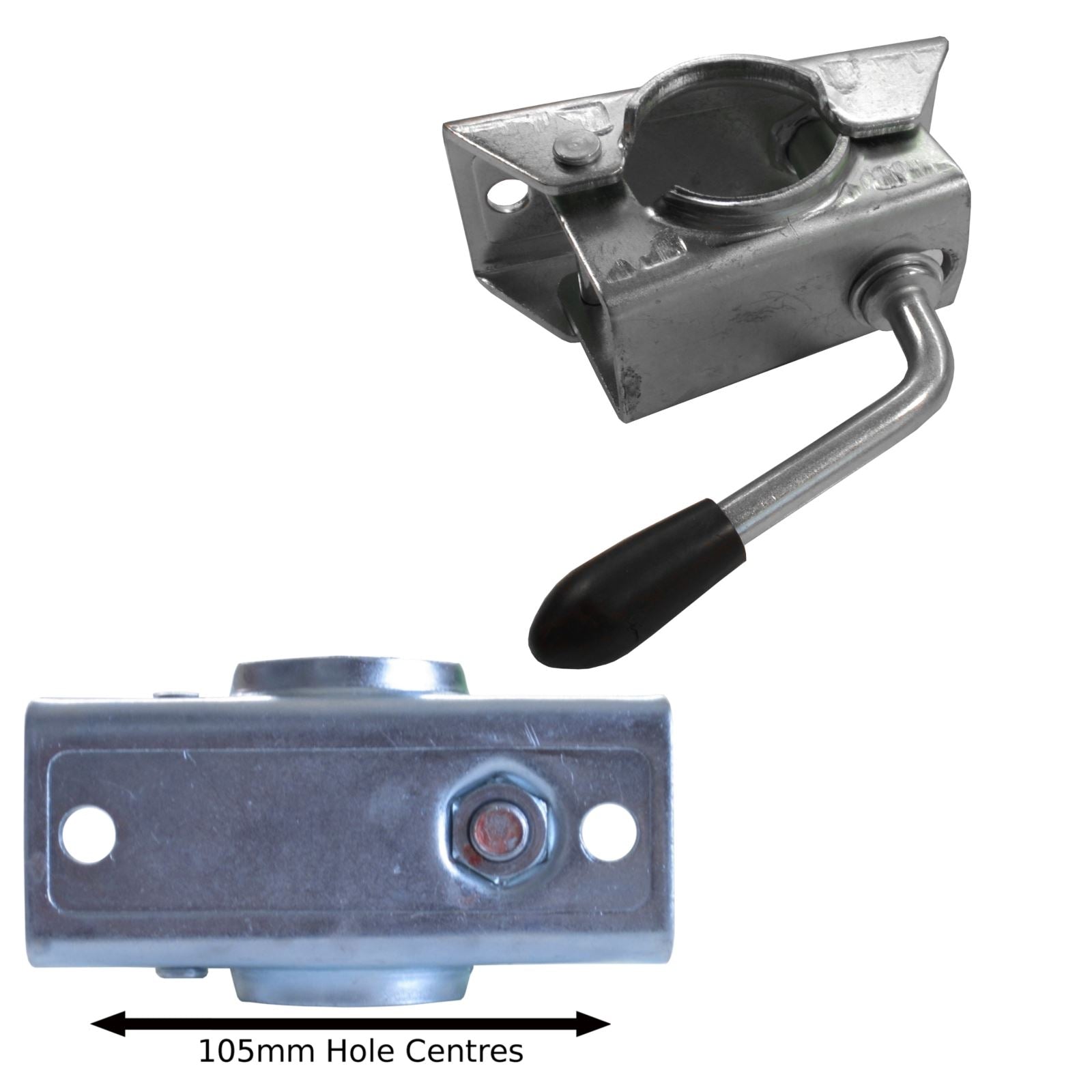

Complete with a pressed steel split clamp, style as pictured to mount it to your trailer. The mounting holes are M10 and the hole centres are 10.5cm.

The diameter of the jockey wheel shaft is 48mm.

Guide nose weight is 150kg, however please see our Jockey wheel selection guide below.

Galvanised steel construction.
